NUS Processing of Ubiquitin 4D NOESY

This guide outlines the process for handling Ubiquitin 4D NOESY data using a combination of preprocSPARSE, nmrPipe, MFT, and SSA on various UNIX-based systems.

Note: The acquisition data (.ser) and the full 4D spectrum (spectrum.ucsf) are not included in this guide.

Software Requirements

Tested Environments: Ubuntu 22.04, CentOS 7, Fedora 3X, Debian 10-11, FreeBSD 10-12

Important Considerations

  1. preprocSPARSE Compatibility: This script depends on several UNIX and NMRPipe programs and may not be compatible with all UNIX systems. It’s distributed under GPL license in version 1.5. If licensing issues arise, consider using the original version (1.0), which requires manual edits of automatically generated files but has no license restrictions. For more details, visit the preprocSPARSE homepage.

  2. MFT/SSA Compatibility: There are known issues with MFT/SSA binaries on some GNU/Linux systems, including crashes and empty spectra generation.

  3. The license for MFT/SSA restricts use to non-commercial purposes.

  4. Some versions of Topspin incorrectly set the carrier frequency (CAR) values in the acquisition files (acqu*); for more information, refer to step 2 below. This error should be corrected either before the Non-Uniform Sampling (NUS) reconstruction of the 4D spectrum, as outlined below, or after that, during the peak picking process. While the most accurate method to fix this Topspin referencing error is before NUS reconstruction, for automation purposes, it can also be manually adjusted during peak picking. This adjustment involves aligning the HC-13C projection with the 13C HSQC using Sparky, as detailed in step 7 below. Although there are some numerical discrepancies between these two methods, the resulting 13C axis shifts should be nearly identical and are generally negligible.

Processing Workflow for AIffinity/101 with pulseprogram noehcnhwg4d_nove

Initial Setup and Corrections

native axis order: HN-15N-13C-HC MFT/SSA axis order: HN-HC-13C-15N

  1. Change Directory to AIffinity/101:
    cd AIffinity/101
  2. Correct Known TopSpin Bugs related to badly writren CAR values (average shifts of each nucleus):
    • For the 13C axis, change from 39.1096 ppm to 41 ppm.
    • For the HC axis, change from 6.666 ppm to 4.7 ppm.

    These corrections are included in the preprocSPARSE.inp.1.5 file provided.

    • How to calculate the correct 13C and HC CAR values and which version of Topspin generates this error?

      Answer: The process involves some trial and error. Review all the SFO and BF values listed in the respective acquisition files (acqu*) and try to determine which version of Topspin was used based on these values. Additionally, other parameters, such as SW, might also be incorrect. The issue was initially reported a while ago, and although Bruker has released about 2-3 patches to address it, the error still occurs randomly in various versions, so there is no guaranteed way to predict which versions are error-free.

  3. Execute preprocSPARSE:
    preprocSPARSE -nuft < preprocSPARSE.inp.1.5
  4. Navigate to the spectra Directory:
    cd spectra/

Running preprocSPARSE and Adjustments

  1. Create a run.sh Script as indicated by the final message from preprocSPARSE:
    • Limit the HN axis to 6-10 ppm: add --roi=10:6
    • Flip HC and 13C axes: add --flip=110 to cleaner; argument –flip flips selected INDIRECT dimensions; this is controled by the FLIP[234] parameters in proprocSPARSE.inp
    • For no States-TPPI: optionally add --tppi=000 to cleaner; argument –tppi applies States-TPPI sign inversions for odd increments; this is controled by the SWAP[234] parameters in proprocSPARSE.inp
    • Limit HC axis to 8 ppm: add --limits=:8 to reconstructor

    NOTE: States-TPPI (Time Proportional Phase Incrementation): This is a method used to improve the resolution and sensitivity of NMR spectra, especially in multi-dimensional experiments. It involves acquiring multiple transients with different phase cycling schemes to effectively suppress unwanted signals and artifacts. Sign Inversions for Odd Increments: In the States-TPPI method, each FID (Free Induction Decay) is acquired with a specific phase cycling pattern. For odd increments, the phases of the FIDs are systematically inverted compared to those of the even increments. This inversion helps in canceling out certain artifacts or unwanted signals, improving the quality of the spectrum. Putting it together, “States-TPPI sign inversions for odd increments” means that in the acquisition of the 4D NOESY spectrum, the States-TPPI method is employed, and for every odd increment, the phases of the acquired FIDs are systematically inverted compared to the even increments. This technique aids in enhancing the spectral quality by minimizing artifacts and improving signal resolution in the indirect dimensions of the spectrum.

  2. Edit parameters.txt:
    • Change names to HN, HC, 13C, 15N.
    • Set phases2 to “0.0 180.0” for a 1-point delay in 13C.
  3. Check for test.fid, and if missing, execute:
    ./fid.com
  4. Perform a NUS Test Run (fast, without NUS cleaning):
    ./run.sh
    • Review 2D projections in roi_6_10-nuft/.
    • Adjust parameters.txt and/or run.sh if necessary.

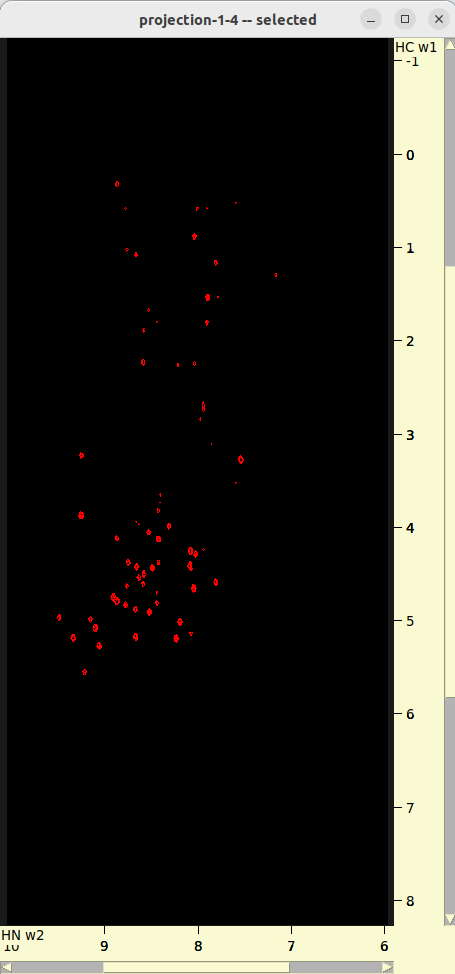

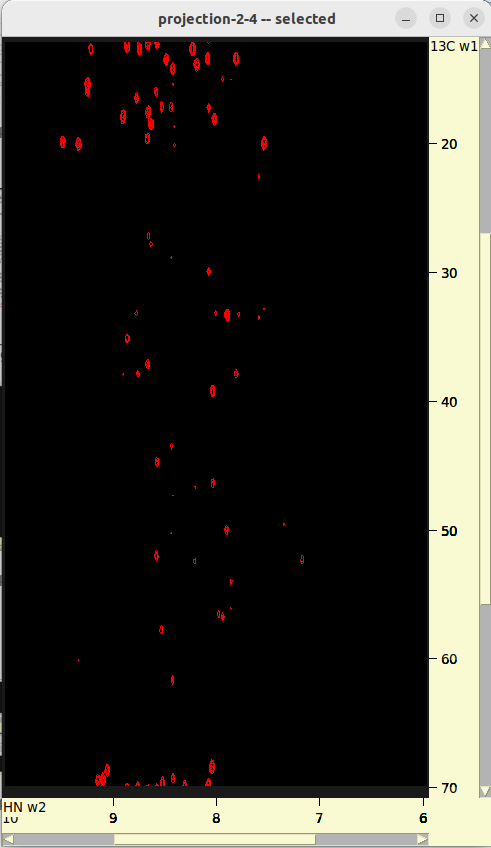

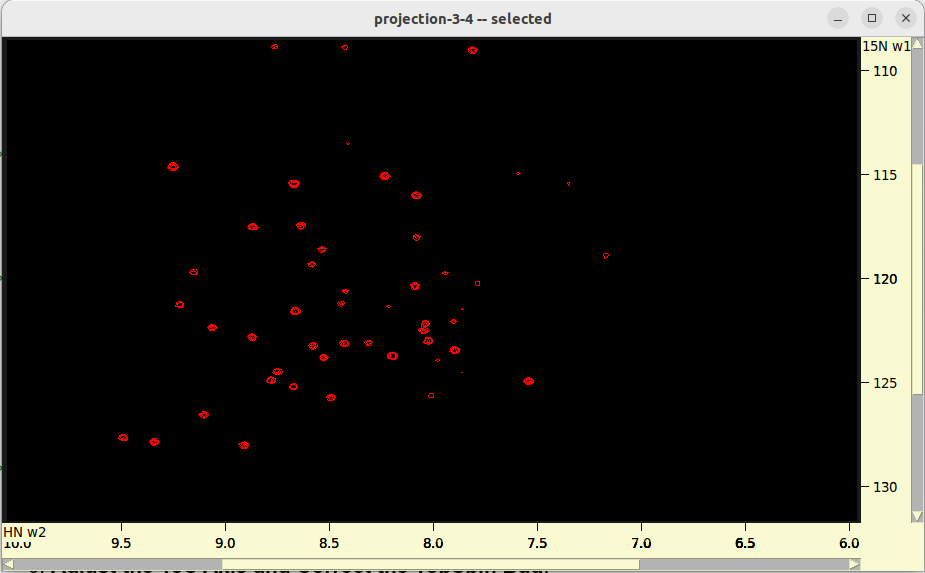

    projection 1-4 projection 2-4 projection 3-4

  5. Edit run.sh to comment out the first part and uncomment the second part for a full NUS run (slow, with NUS cleaning):
    ./run.sh
    • Review 2D projections and the 4D spectrum in roi_6_10/.
  6. Clean Up Temporary Files:
    rm test.fid cleaner_fid

  7. Adjust the 13C Axis and Correct the TopSpin Bug:

    • The *13C axis is folded by 1/4SW** and relevant peaks are aliased. The amount of folding is also influenced by the mentioned TopSpin bug. For a definition of “aliasing” and “folding” read this. An example of spectrum aliasing-unaliasing can be found here. To match the 13C axis in the 4D NOESY with the 2D HC-C HSQC (AIffinity/3/), shift the 13C axis in Sparky by this amount: -(58.0333/4 + (41-39.1096)*2) = -18.289 ppm. Fortunately, when exporting the shifted peaks from Sparky to a Sparky list file, they preserve the corrected 13C coordinates. The most correct approach would be to do “circular shift” on the raw 4D spectrum, to unfold aliased peaks, as it’s impractical to do CS on a finished 4D (~10GB size). But this cannot be done in SSA programs or in Sparky. It is typically compensated by the peak aliasing feature in Sparky during peak picking/assignment. NMRPipe and nmrglue have “circular shift” functions.

      • http://nmrwiki.org/wiki/index.php?title=CS_-circular_shift%28nmrPipe_function%29

      • https://nmrglue.readthedocs.io/en/latest/reference/generated/nmrglue.process.proc_base.cs.html

    Procedure in Sparky:

    • Make sure than the name of nuclei in both the 2D projection and HSQC are the same. E.g. 13C and HC. If not, use ucsfdata command line utility from Sparky to rename them accordingly.
    • load the 2D projection and the 13C HSQC to Sparky.
    • xa on both widnows to view the axes names, and, if needed, xr to roll them and make both windows consistent.
    • yt and synchronize both axes.
    • ct to adjust the peak contours and colors
    • ol and create an overlay of the 2D projection to the 13C HSQC.
    • st, select the 2D projection and replace the 0.000 value in the 13C row and under the shift column with -18.289. Click apply and you are done!
    • Alternatively, if you don’t know the exact shift, you can add with gradually increasing shift files in the st table, type al, chose one reference peak in eachg spectrum, and use it to align the two spectra. To do that, switch to peak selection mode with F1, hold the “shift” button and select the 13C HSQC peak on the overlaid spectra window and the other peak in the 2D projection window. Once the are both selected, click the Align button. Then check the shift offset values in spectrum settings (st)

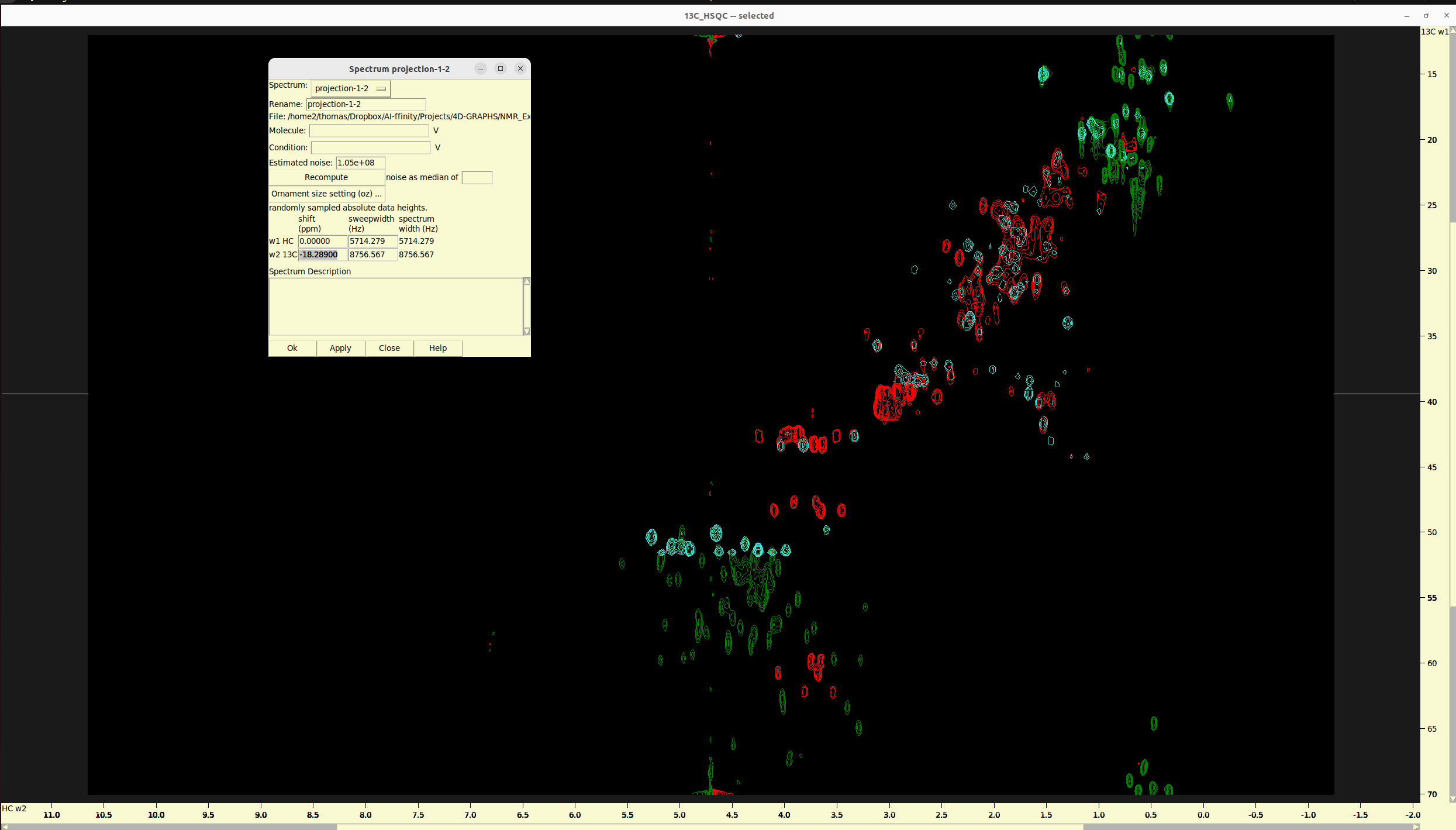

    Overlay of HC-C plane and 13C HSQC

  8. Unalias Peaks in Sparky and Export them to a File

Identify folded or alias peaks: an experienced eye can easily do that, but for a beginner chemical shift prediction from a PDB file (e.g. AlphaFold structure) could provide insights about where and wich peaks to expect. You can use the following online tool:

https://shiftx2.ca/ http://carbon.structbio.vanderbilt.edu/index.php/servers/show?s_id=9

For maximum performance I recommend installing and running locally UCBShift

Aliased Peaks: To correct peaks that read at incorrect chemical shifts (i.e. folded peaks) right click on the peak which will open a view menu. On the view menu click “Alias” and select the command (Add a sweepwidth, Subtract a sweepwidth, Reflect upfield…..etc. )that will correct the peak. To confirm that a peak has been corrected unselect a peak and then reselect it and confirm the chemical shift has changed on the Assignment Menu “at”. If you have made a mistake “unalias a peak” by selecting Unalias Selected Peak on the Alias Menu or use “ua” accelerator this will restore the original chemical shift, confirm as above. Aliased Peaks can be corrected on HSQC or strips of 3D data sets, correcting the HSQC will no necessary correct the chemical shifts on the strip data.

Spectra acquired in TPPI mode can create aliased peaks that are reflected about the up field or down field edge of the spectrum. The u1 command gives the selected peak an alias by reflecting the peak w1 position about the up field spectrum edge. Using the u1 command a second time removes the alias from the selected peak. The u2, u3 and u4 commands mark selected peaks as aliased in the w2, w3 and w4 dimensions. The d1, d2, … commands perform the reflection about the down field edge of the spectrum.

Sparky Commands for Peak Unaliasing: add sweepwidth a1 a2 a3 a4: Adjust peak w1,w2,w3,w4 frequency one sweepwidth downfield. subtract sweepwidth A1 A2 A3 A4: Adjust peak w1,w2,w3,w4 frequency one sweepwidth upfield. reflect upfield u1 u2 u3 u4: Reflect (aka unfold) peak w1,w2,w3,w4 frequency about the upfield boundary. reflect downfield d1 d2 d3 d4: Reflect (aka unfold) peak w1,w2,w3,w4 frequency about downfield boundary. center peaks pc: center selected peaks at local maxima or minima. get linewidths pe: Get linewidth of selected peaks as width at half max. group peaks pg: create a peak group from selected peaks undo eu: undo last peak move, deletion, or integration.

Once you make sure that the shift value -18.289 is the correct one, then go to the 4D spectrum to unalias the aliased peaks.

Processing of data/AIffinity_2024/12 for 4D HSQC-NOESY-HSQC Analysis

This tutorial details the steps for processing NMR data from the pulse program hsqcnoesyhsqccngp4d (oficial Bruker pulse sequence), focusing on the Ubiquitin sample in the context of data/AIffinity_2024/12.

native axis order: HN-15N-HC-13C MFT/SSA axis order: HN-13C-HC-15N

Processing Steps

Initial Setup

  1. Change Directory to your project folder:
    cd data/AIffinity_2024/12
  2. Execute preprocSPARSE to preprocess the data:
    preprocSPARSE -nuft < preprocSPARSE.inp.1.5
  3. Navigate to the spectra directory:
    cd spectra/

Configuration and Execution

  1. Create and Configure run.sh script based on the final message from preprocSPARSE:
    • Limit HN axis to 6-10 ppm: add --roi=10:6
    • Flip HC and 13C axes: add --flip=110 to cleaner
    • Implement States-TPPI in HC and 13C: add --tppi=110 to cleaner
    • Since HC is folded, set no limit the HC axis.
  2. Edit parameters.txt to refine axis names and settings:
    • Update axis names to HN, 13C, HC, 15N.
    • No changes needed for phases as the 1-point delay in 13C is not used here.
  3. Perform a NUS Test Run (fast, without NUS cleaning):
    ./run.sh

  4. Prepare for Full NUS Processing by editing run.sh, commenting out the initial test part, and uncommenting the section for the full run.

  5. Execute Full NUS Run (slow, with NUS cleaning):
    ./run.sh

Adjustments and Cleanup

  1. Adjust the HC Axis to match with HC-C HSQC (data/AIffinity_2024/13):
    • This time the HC axis is folded by 1/4*SW, with no additional offset. To match with HC-C HSQC (data/AIffinity_2024/13) the HC axis can be shifted in Sparky by this amount: -(11.9037/4) = -2.976 ppm.
  2. Clean Up Temporary Files:
    rm test.fid cleaner_fid

Visual Comparison of NUS reconstructed 4D Spectra with 2D HSQC spectra

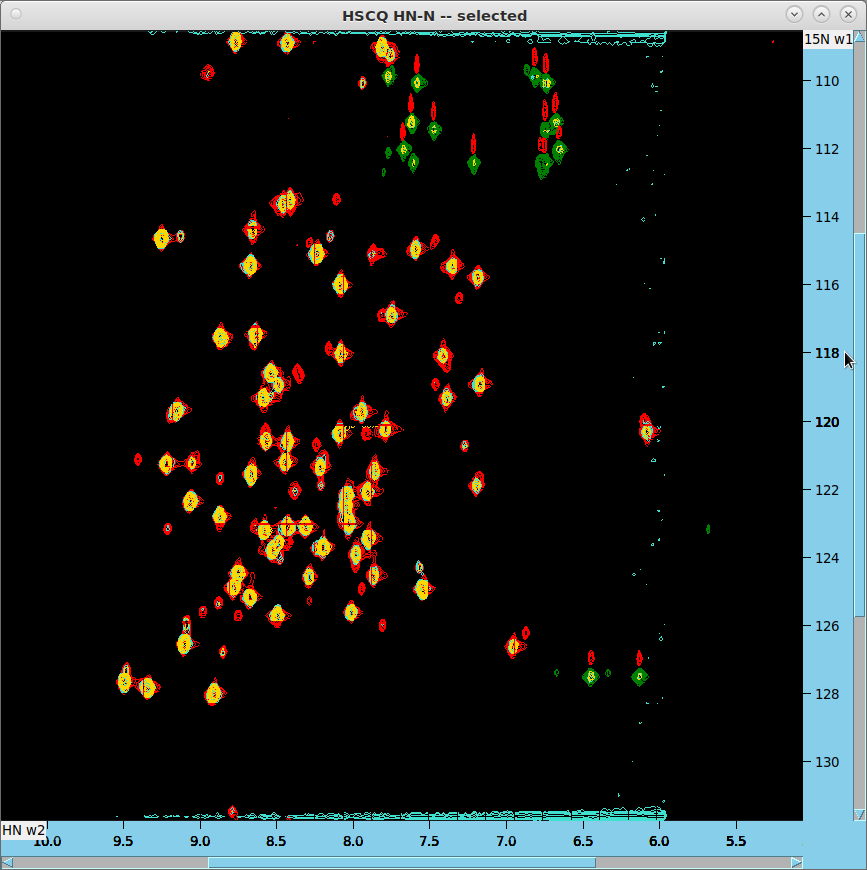

HN-N HSQC Analysis

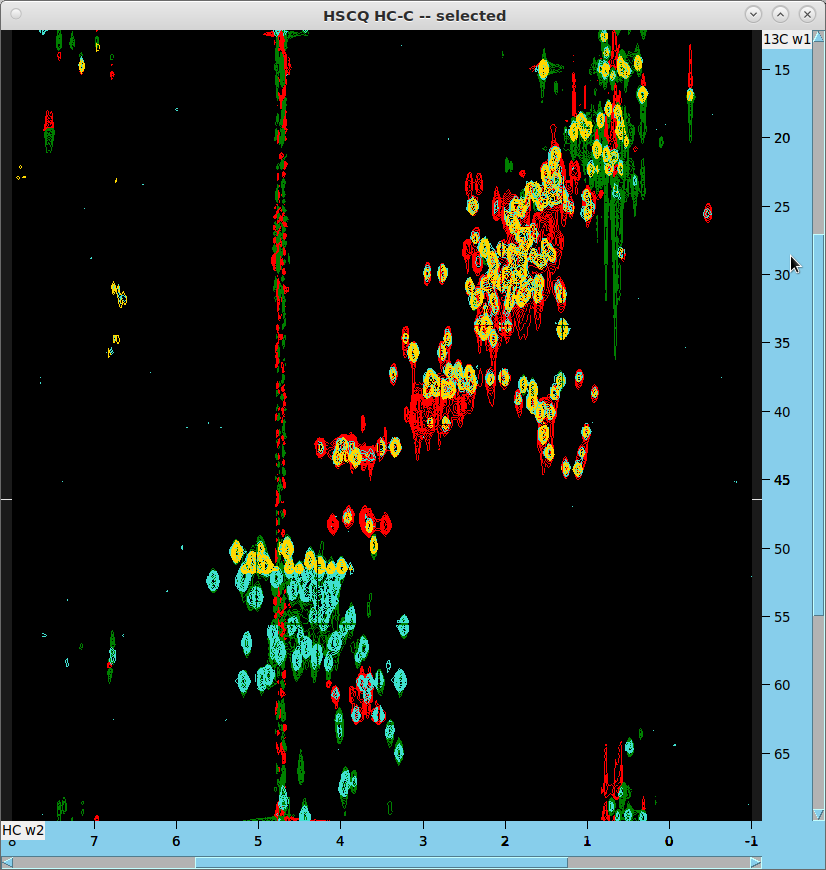

HC-C HSQC Analysis

  1. Generate additional 2D HC-C projection from 4D spectrum:
    ucsfdata -p4 -r -o projection-1-2-3.ucsf spectrum.ucsf
ucsfdata -p3 -r -o projection-1-2.ucsf projection-1-2-3.ucsf
  2. In Sparky, read the resulting projections and shift the C or HC axes as previously described.
  3. Overlay these projections on the HC-C HSQC (data/AIffinity_2024/13 in red/green). The projection from data/AIffinity_2024/12 will be in turquoise, with the AIffinity/101 projection in gold. Note that the missing part of AIffinity/101 (gold) got shifted outside the HSQC window but the peaks there can be correctly handled with the peak aliasing feature in Sparky.

15N HSQC Analysis

  1. Generate additional 2D N-HN projection from 4D spectrum:
    ucsfdata -p1 -r -o projection-2-3-4.ucsf spectrum.ucsf
ucsfdata -p1 -r -o projection-3-4.ucsf projection-2-3-4.ucsf
  2. In Sparky, read the resulting projections and reference the N or HN axes as previously described.
  3. Overlay these projections on the 15N HSQC.

Authors: Petr Padrta & Thomas Evangelidis, 8.4.2024
